METHODOLOGY WINDING

METHODOLOGY WINDING

METHODOLOGY WINDING - ROUND WIRE

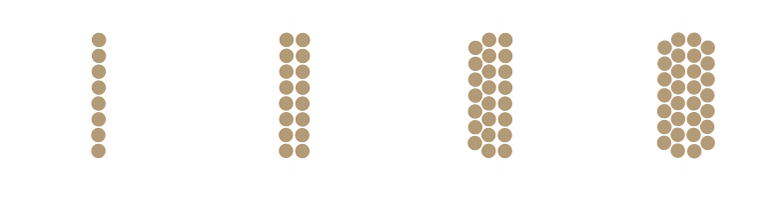

METHODOLOGY WINDING - ROUND WIRE — A. Single-layer inside or outside winding; B. Single-layer inside & outside winding; C. Single-layer inside & two-layer outside winding; D. Two-layer inside & outside winding
A. Single-layer inside or outside winding B. Single-layer inside & outside winding C. Single-layer inside & two-layer outside winding D. Two-layer inside & outside winding

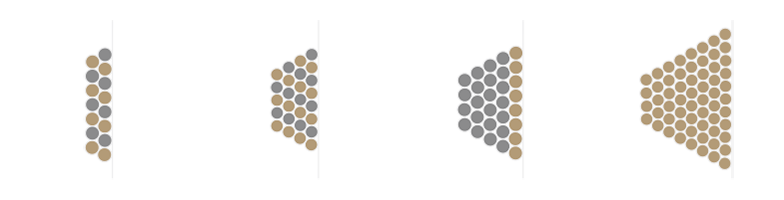

METHODOLOGY WINDING - ROUND WIRE — E. Two-layer double- wire shunt-wound winding; F. Four-layer double- wire shunt-wound winding; G. Five-layer two group & two kinds of wire winding; H. Eight-layer eight lead winding
E. Two-layer double- wire shunt-wound winding F. Four-layer double- wire shunt-wound winding G. Five-layer two group & two kinds of wire winding H. Eight-layer eight lead winding

METHODOLOGY WINDING - FLAT WIRE

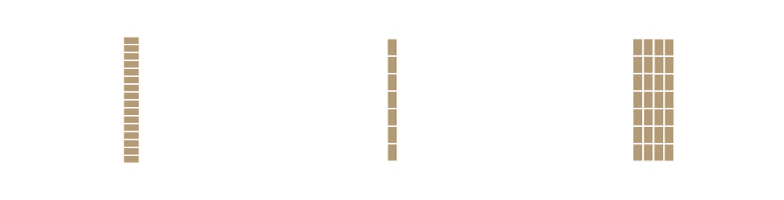

METHODOLOGY WINDING - FLAT WIRE — I. Single-layer vertical winding; L. Single-layer parallel winding; O. Two-layer inside & outside parallel
I. Single-layer vertical winding L. Single-layer parallel winding O. Two-layer inside & outside parallel

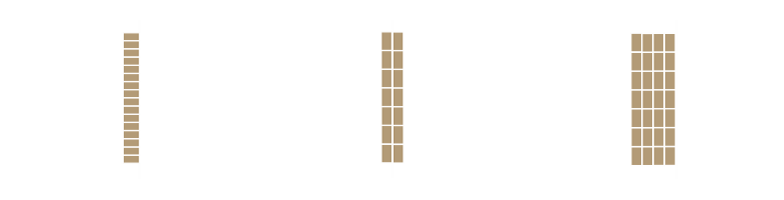

METHODOLOGY WINDING - FLAT WIRE — J. Single-layer inside & outside vertical winding; M. Single-layer inside & outside parallel winding; P. Four-layer parallel winding
J. Single-layer inside & outside vertical winding M. Single-layer inside & outside parallel winding P. Four-layer parallel winding

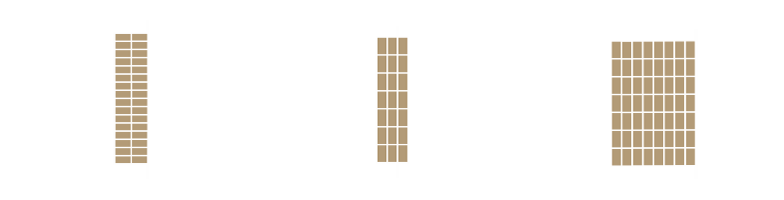

METHODOLOGY WINDING - FLAT WIRE — K. Two-layer vertical winding; N. Single-layer inside & two-layer outside parallel winding; Q. Eight-layer parallel winding
K. Two-layer vertical winding N. Single-layer inside & two-layer outside parallel winding Q. Eight-layer parallel winding

METHODOLOGY WINDING - SQUARE WIRE & HYBRID WIRE WINDING

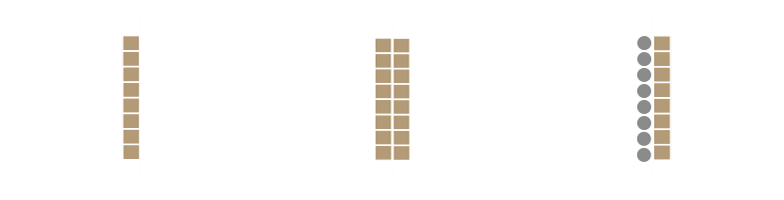

METHODOLOGY WINDING - SQUARE WIRE & HYBRID WIRE WINDING — R. Single-layer square wire inside or outside winding; T. Single-layer square wire inside & outside winding; V. Single-layer square wire inside & single-layer round wire outside winding
R. Single-layer square wire inside or outside winding T. Single-layer square wire inside & outside winding V. Single-layer square wire inside & single-layer round wire outside winding

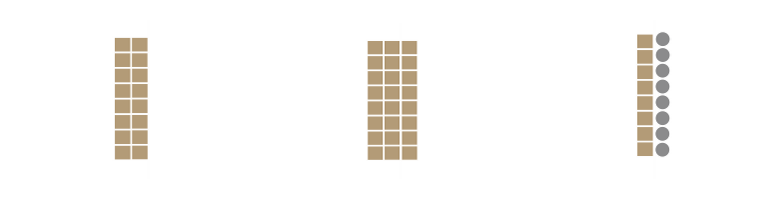

METHODOLOGY WINDING - SQUARE WIRE & HYBRID WIRE WINDING — S. Two-layer square wire outside winding; U. Square wire single-layer inside & two-layer outside winding; W. Single-layer round wire inside & single-layer square wire outside winding
S. Two-layer square wire outside winding U. Square wire single-layer inside & two-layer outside winding W. Single-layer round wire inside & single-layer square wire outside winding

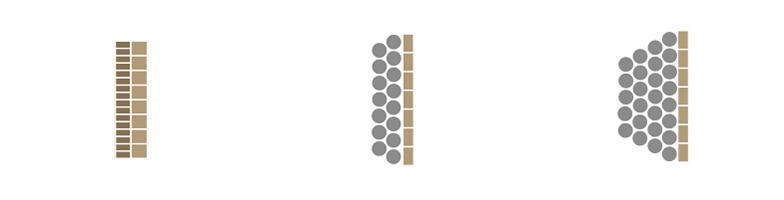

METHODOLOGY WINDING - SQUARE WIRE & HYBRID WIRE WINDING — X. Single-layer square wire inside & single-layer flat wire outside winding; Y. Single-layer flat wire parallel winding inside & two-layer round wire outside winding; Z. Single-layer flat wire parallel winding & four-layer round wire outside winding
X. Single-layer square wire inside & single-layer flat wire outside winding Y. Single-layer flat wire parallel winding inside & two-layer round wire outside winding Z. Single-layer flat wire parallel winding & four-layer round wire outside winding

METHODOLOGY WINDING - SPECIAL WINDING

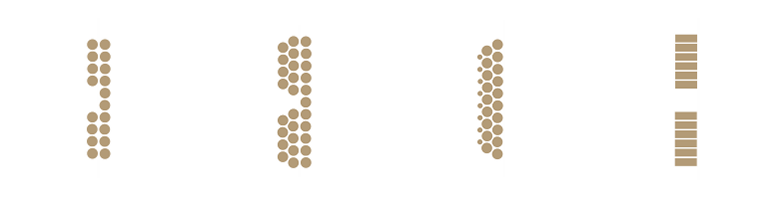

METHODOLOGY WINDING - SPECIAL WINDING — B-1. Single-layer inside & single-layer outside round wire two section winding; C-1. Single-layer inside & two-layer outside round wire two section winding; C-2. Three-layer outside round wire winding; I-1. Single-layer flat wire vertical winding
B-1. Single-layer inside & single-layer outside round wire two section winding C-1. Single-layer inside & two-layer outside round wire two section winding C-2. Three-layer outside round wire winding I-1. Single-layer flat wire vertical winding
